REFERENCE CONFIGURATIONS

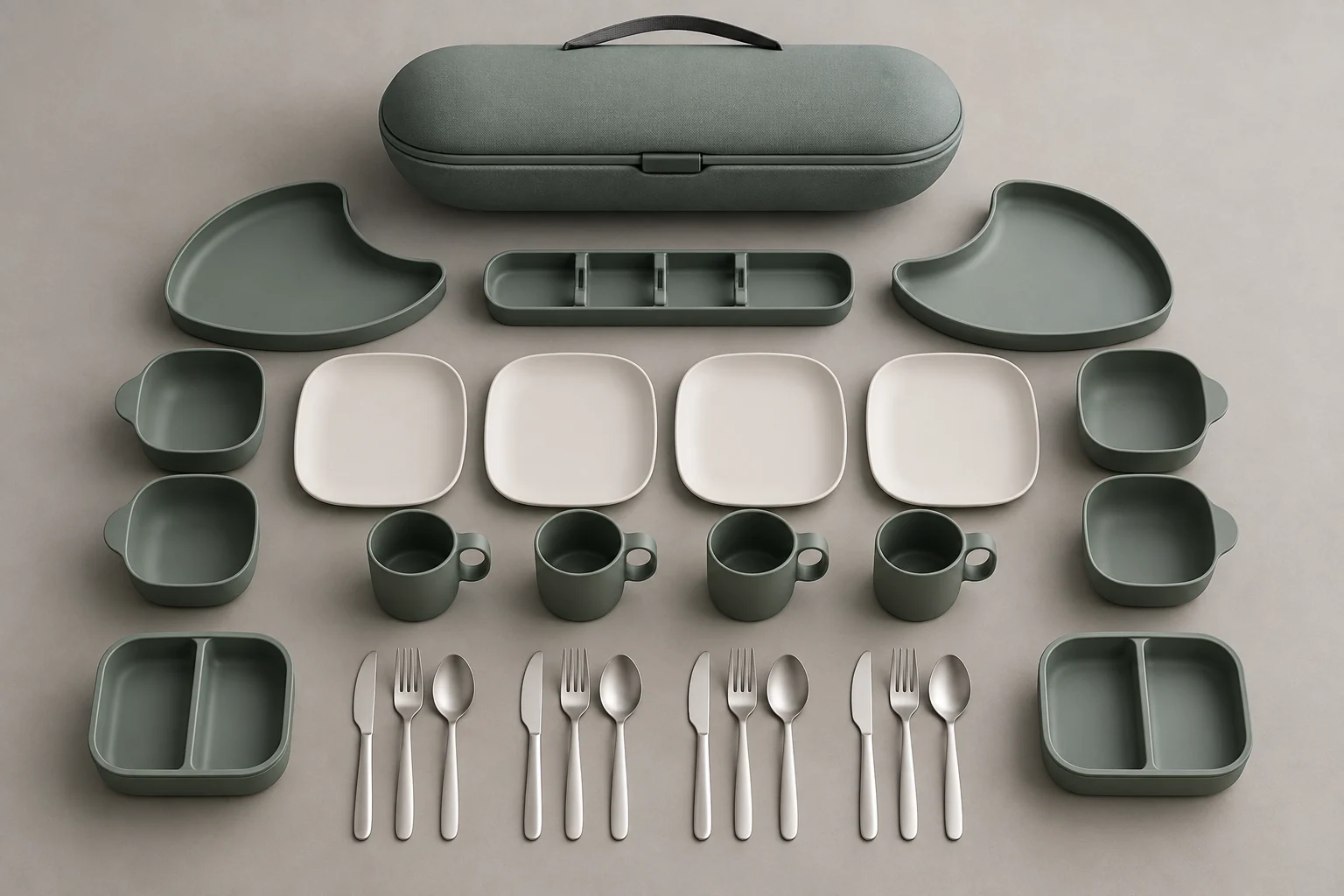

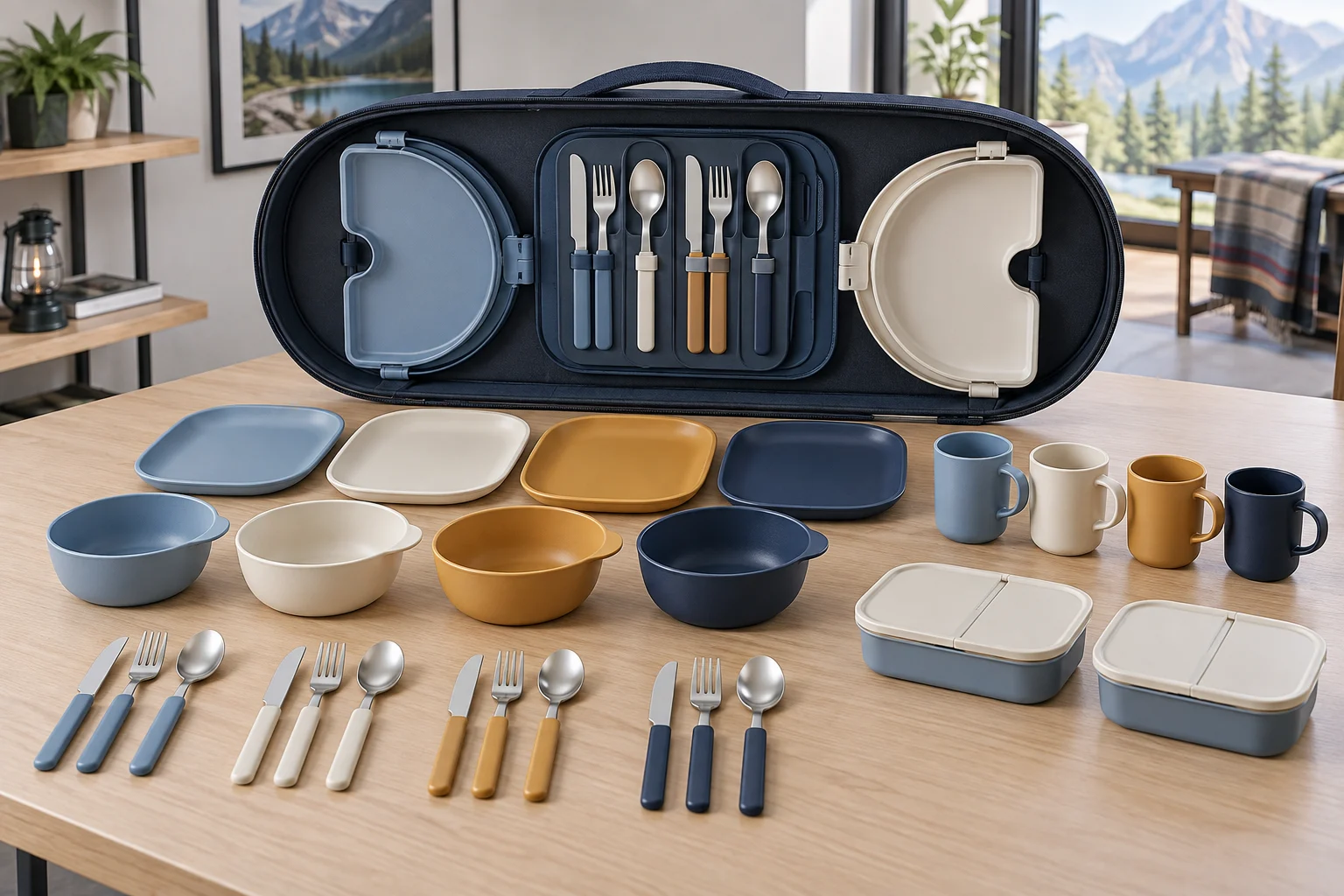

Images show an organization concept only. Release the configuration only after component geometry, materials and interfaces are tied to drawings and representative samples.

Use the central rail as the loading datum

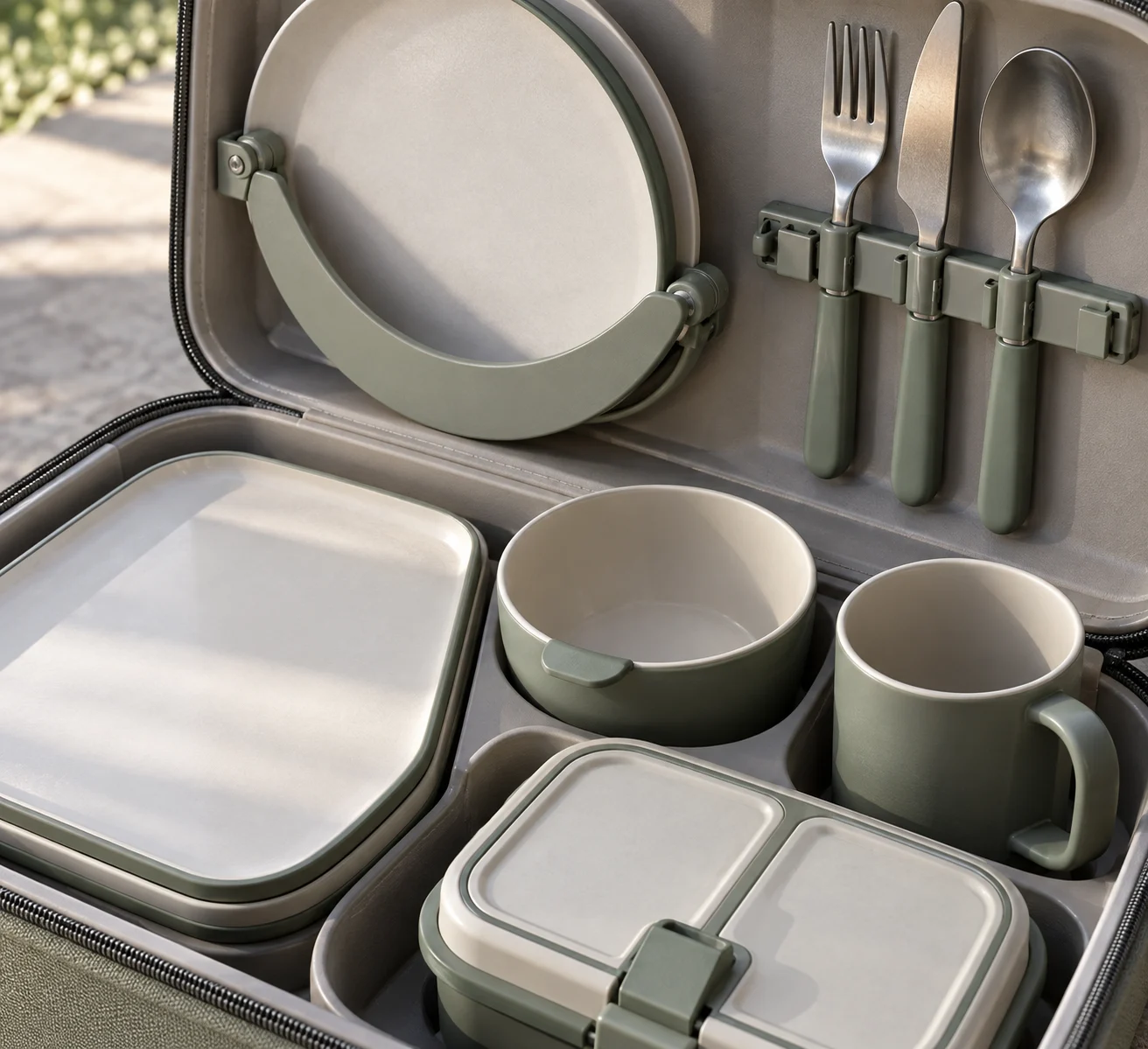

The cutlery rail divides the case and gives both crescent trays a repeatable reference edge. Buyers should define attachment, release direction, cleanability, utensil-tip protection and clearances. The rendering is not evidence of retention, impact, compression or repeated-use performance.

Start the loaded-case drawing from controlled maximum envelopes, not from a marketing image. Record the plate corner radius, bowl thumb-tab projection, mug handle sweep, lunch-box hinge path and the knife, fork and spoon protection volume. Compare each value with the rail, tray and shell drawings. Compatibility to be confirmed by project sample and drawing.

Review rounded-square pieces as one nesting family

Rounded-square plates and deep bowls create corner contacts that differ from circular stacks. Review stack height, rotation, release, rim protection and whether thumb tabs remain accessible. Loop handles make the mugs easier to identify but also enlarge the storage envelope and can become hard contact points.

Ask the sample team to demonstrate removal and return in a repeatable sequence. Observe whether a user must drag one food-contact face across another, force a mug handle past a bowl tab, or rotate a lunch box against cutlery. Record each interference by component code and drawing revision. An empty-case fit check cannot replace a complete loaded-set review.

The twin-compartment lunch-box concept provides separation, but no leakage, sealing or thermal claim is made. Define intended orientation, food types, contact duration, closure behavior and the required verification before requesting any wording. Dinnerware and meal containers are not cookware and must not be presented for direct heat unless a separately verified product scope supports that use.

Inspect Arc-Bay retention interfaces

Control tray hinges, rail clips, handle clearances and food-contact protection through drawings and loaded samples. Compatibility to be confirmed by project sample and drawing.

B2B development controls

• Freeze the component matrix before fixing tray and rail envelopes.
• Review the complete loaded case in carry, open and vertical orientations.
• Protect food-contact faces from utensil tips, hinges and clips.
• Check bowl-tab and mug-handle access without forced contact.
• Define lunch-box hinge clearance and return path.
• Approve logo and packaging only after material and process review.
• Keep dinnerware claims separate from cookware and direct heat.

A practical approval record should show the component code, drawing revision, sample ID, observed fit, clearance issue, responsible owner and decision. If a tray material, shell padding, mug handle, plate thickness or retail insert changes, repeat the affected loaded-case observations. Do not infer production capability, tolerance, capacity or lead time from the concept image.

Material and compliance boundary

Concept images do not prove material identity, certification, migration performance, closure behavior, case strength or market authorization. Define the evidence scope from the destination market, expected foods, contact time, temperature, cleaning route and decoration. Unresolved values must remain explicitly recorded as “To be confirmed for the project.”

Review the modular component guide, retention matrix and case-fit checklist. Primary context: FDA, EU framework regulation, and NIST traceability.

Procurement FAQs

Are the crescent trays removable?

They are hinged in the concept. Removal, attachment and cleaning behavior require project confirmation.

Can the rail hold other utensils?

A revised arrangement can be evaluated after confirming utensil geometry, protection and shell clearance.

Are the lunch boxes leakproof?

No leakage promise applies to this concept. The project must state the closure design, carrying orientation, verification method and acceptance boundary before any such claim.

Could existing service pieces fit this case?

Existing parts may enter a feasibility review, but their full envelopes and storage contacts must be checked. Compatibility to be confirmed by project sample and drawing.

Are materials fixed?

No. Material, finish and color availability must be confirmed for the project.

What belongs in the RFQ?

Send user count, component matrix, case envelope, storage priorities, target markets, food-use conditions, branding, packaging and evidence expectations.
